Max. Web Width 1450/1650/1850/2250mm Flexo Printing Machine for High Speed Printing

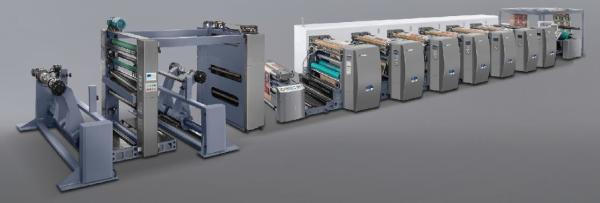

FM-C1450-2250 Flexographic Printing Machine(Petal Type)

1. Petal type plate mounting, anilox and cylinder with quick change structure.
2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
4. Registering remains the same during lifting process.

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification	1450	1650	1850	2250
Max. Web Width	1450mm	1650mm	1850mm	2250mm
Max. Printing Width	1430mm	1630mm	1830mm	2200mm
Max Die-Cutting Width	1430mm	1630mm	1830mm	2200mm
Printing Repeat	600-1600mm	600-1600mm	600-1600mm	600-1600mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp	1/8cp
Max Printing Speed	160-220m/min	160-220m/min	160-220m/min	160-220m/min
Diameter of web roller	100mm	100mm	100mm	100mm
Drying mode	Warm Drying/IR Drying/ UV Drying
Oil used	Aqueous ink/ UV Ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper

       Wenzhou Fengming Machinery Co,Ltd was founded in 2006,is a pro­ fessional manufacturer of all kinds of packaging printing machinery.The com­ pany has always been in line with the" quality foundry Fengming brand" and "pursuit of excellence" corporate philosophy.committedto the development and development of new products,formed a design,research and develop­ ment,prodution,sales as one of the operational system.
      The company mainly produces internationally advanced,domestic leading level of computer color flexographic printing machine,unit type wide flexog­ raphic presses and other printing and packaging machinery products,for domestic and foreign customers to provide quality products and satisfactory after-sales service.In recent years,our company adhering to the concept of green environmental protection,the development of non-plastic environmen­ tally friendly machinery products,by the domestic and foreign markets.
