200m/min Printing Speed Coffee Cup Flexo Printing Machine with Unit Type Unit Design

Established in 2006, Wenzhou Fengming Machine Co.,Ltd is a professional manufacturer and exporter of Flexo Printing Machine and Wax Coating Machine. We are located in the urban distric of Pingyang, economically developed city on the bank of East China of Zhejiang, Covering an area of 9300 square meters, we now have over 120 employees.With Superior quality, satisfying after sales services, we have got many orders from different customers all over the world. We have exported our machines to more than 30 countries such as Russia, India, Turkey, Thailand, Egypt, etc. And the feedback we get from customers are they feel satisfied with our machines. We always regards "today's quality is tomorrow's market and users are supreme" as aim, and has gained reliance and praise from customers Welcome to visit our factory and to order from us!

Product Description

FM-CS1020-1350 Flexographic Printing Machine(Petal Type)

1. Petal type plate mounting, anilox and cylinder with quick change structure.
2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
4. Registering remains the same during lifting process.
5. Register position automatic memory function.

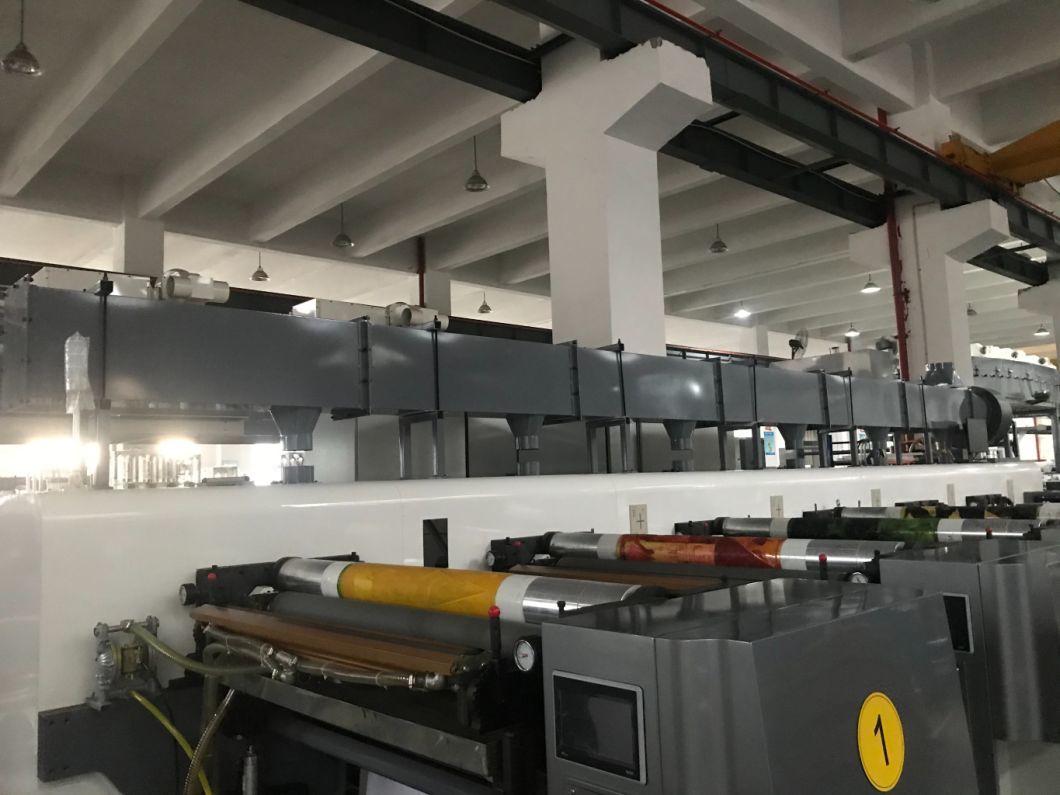

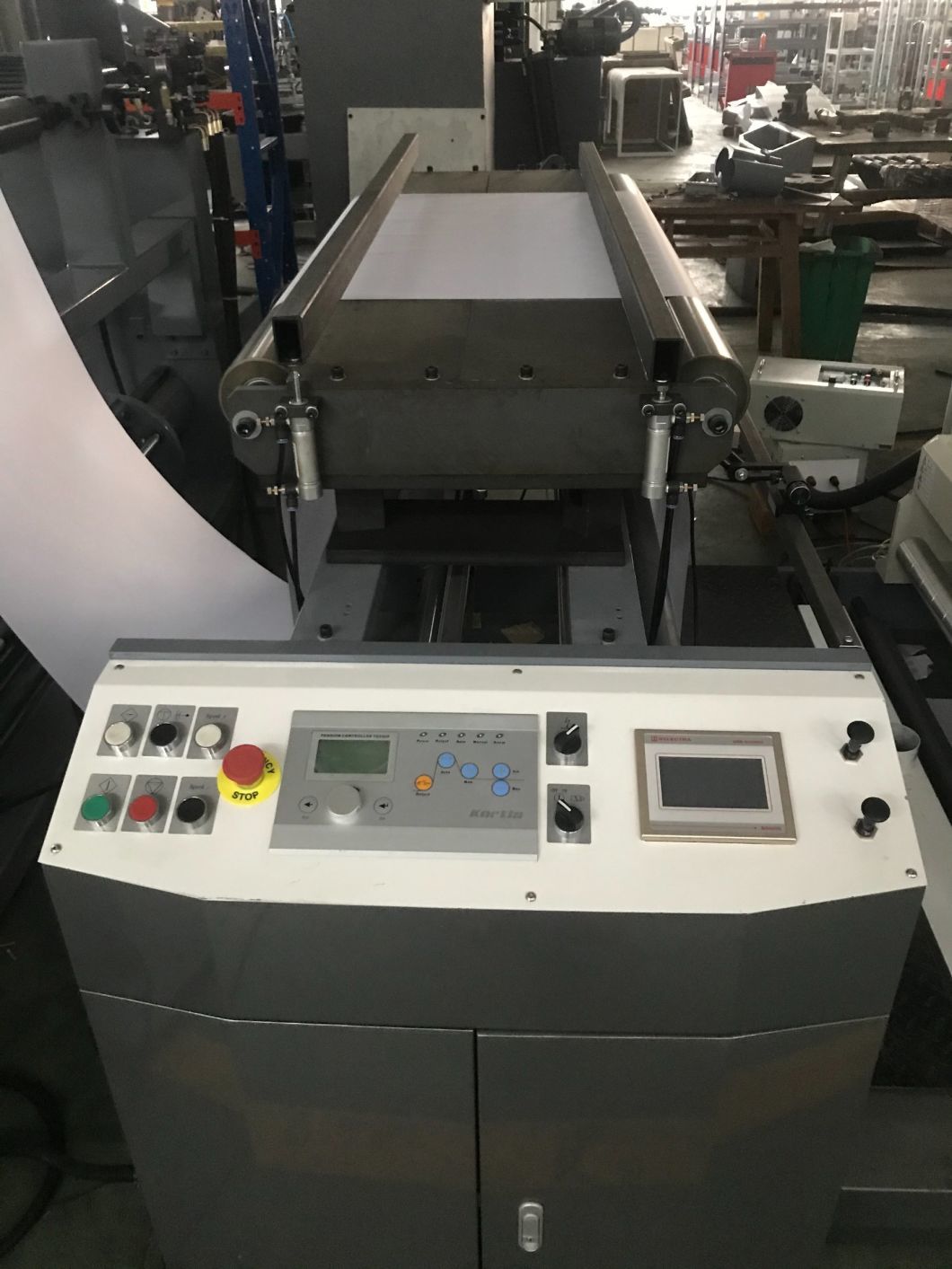

Detailed Photos

Product Parameters

Technical Parameters:

Specification	1020	1320	1350
Max. Web Width	1020mm	1300mm	1350mm
Max. Printing Width	1000mm	1270mm	1320mm
Max Die-Cutting Width	1000mm	1270mm	1320mm
Printing Repeat	300-1200mm	300-1200mm	300-1200mm
Die-cutting Repeat	300-1200mm	300-1200mm	300-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max Printing Speed	240m/min	240m/min	240m/min
Diameter of web roller	100mm	100mm	100mm
Drying mode	Hot Air Drying/IR Drying/ UV Drying (Optional)
Substrate	60-350g chrome paper, aluminum-foil paper, paper board, kraft paper

After Sales Service

1 year warranty and 24 hours after-sales services available and wholelife after-sales support.

       Wenzhou Fengming Machinery Co,Ltd was founded in 2006,is a pro­ fessional manufacturer of all kinds of packaging printing machinery.The com­ pany has always been in line with the" quality foundry Fengming brand" and "pursuit of excellence" corporate philosophy.committedto the development and development of new products,formed a design,research and develop­ ment,prodution,sales as one of the operational system.
      The company mainly produces internationally advanced,domestic leading level of computer color flexographic printing machine,unit type wide flexog­ raphic presses and other printing and packaging machinery products,for domestic and foreign customers to provide quality products and satisfactory after-sales service.In recent years,our company adhering to the concept of green environmental protection,the development of non-plastic environmen­ tally friendly machinery products,by the domestic and foreign markets.
