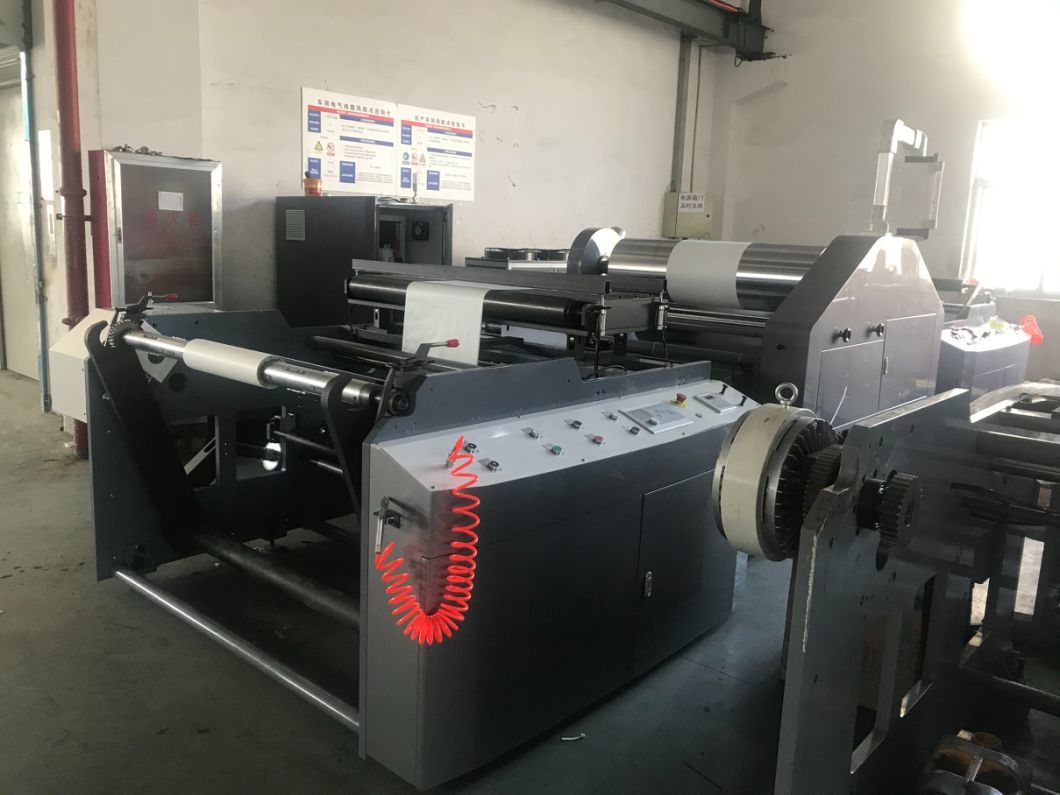

Customizable Food Wrapping Paper Wax Coating Machine with Water Cooling Chiller Now

High Speed Wax Coating Machine

MAIN CHARACTERISTICS:

1.This machine is mainly used in food and packaging industry's packaging paper wax coating, so that papers can be moisture proof and waterproof, such as hamburge paper, candy paper, soap paper and carton packaging kraft paper coated wax
2. Wax one side of paper or two sides of paper
3. Wax coating weight can be controled 4-5 gsm for one side
4.circle water cooling system

MAIN TECHNICIAL SPECIFICATIONS

Specification	FM-L1200
Max.Web Width	1220mm
Max.Waxing Coating Width	1200mm
Max.Unwinder Diameter	1524mm
Max.Rewinder Diameter	1524mm
Max Wax Coating speed	150m/min
Unwinder Power	15KW
Rewinder Power	15KW
Cooling Power	10-15P
Wax Melting Power	Main Wax Melting Power: 9KW
	Auxiliary Wax Melting Power: 12KW
Power Requirement	380V 3PH 50Hz
Substrate	28-300gsm paper

Waxing unit (Fengming invention patent)
High speed paper waxing unit patent CN201610983844
This invention can realize high speed paper coated with wax, effective control of wax quantity, waxing effect is stable and evenly.

1. integral alloy cast iron double wall panels
2. frequency conversion control
3. In front and back the waxing roller are guide rollerl, let the paper on the waxing roller surface having the angle to control paper wax dipping time
4. the wax melting hopper and tray supply big amount of wax , ensure high speed waxing use quantity.
5. doctor blade structure ensures wax coating evenly
6. the special treatment paper guide roller resisting high temperature, non-stick of wax
7. the heat transfer oil ensures the temperature of the wax stable
8. temeprature of wax can be controled

1. melting wax tray: stainless steel

resistant to high temperature capacity: 25 kgs

1. wax melting hopper: stainless steel

temperature adjustable: up to 150 C
Capacity: 50kgs

1. the guide roller: surface Teflon, resisting high temperature, non-stick of wax
2. the waxing roller steel roller, chrome-faced
3. doctor blade , single-side waxing: 2sets
4. transmission mode: 3 phase asynchronous motor: 4KW: 1pc
5. temperature controller: OMRON 5pcs
